Plasma Cutting

CNC Plasma Cutting

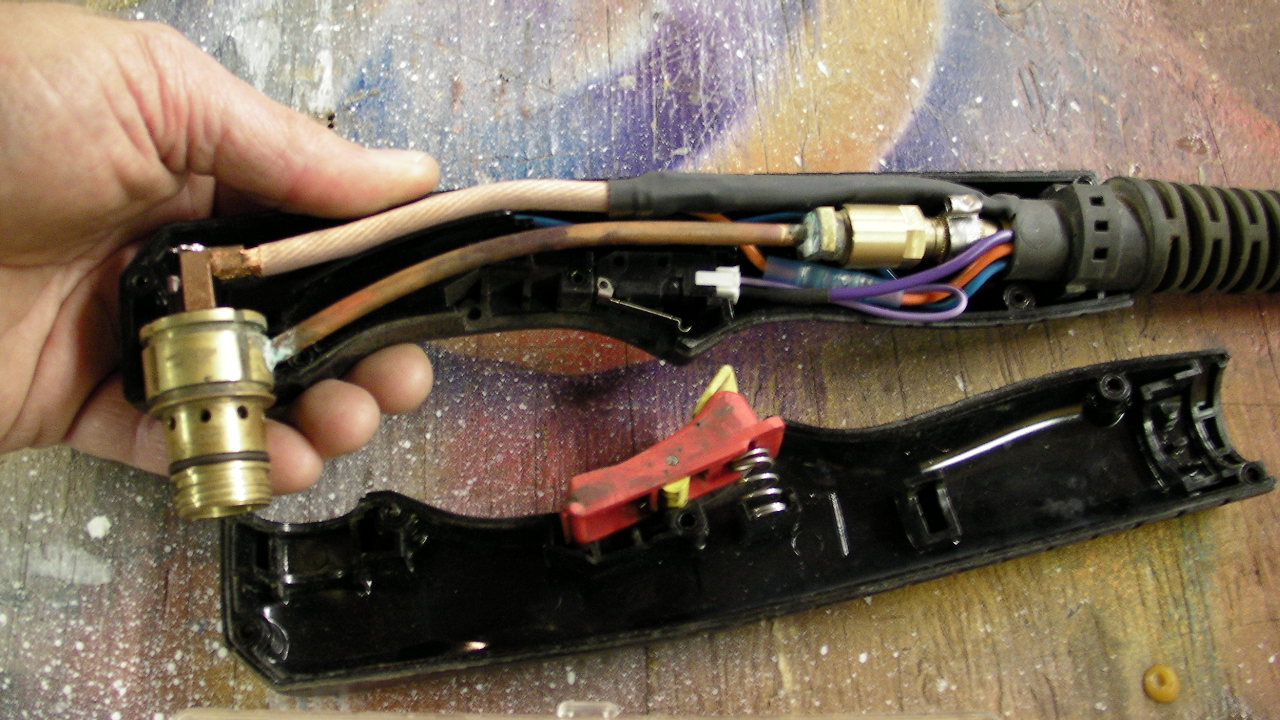

(1) Hypertherm plasma hand torch opened up.
(1) Hypertherm plasma hand torch opened up.

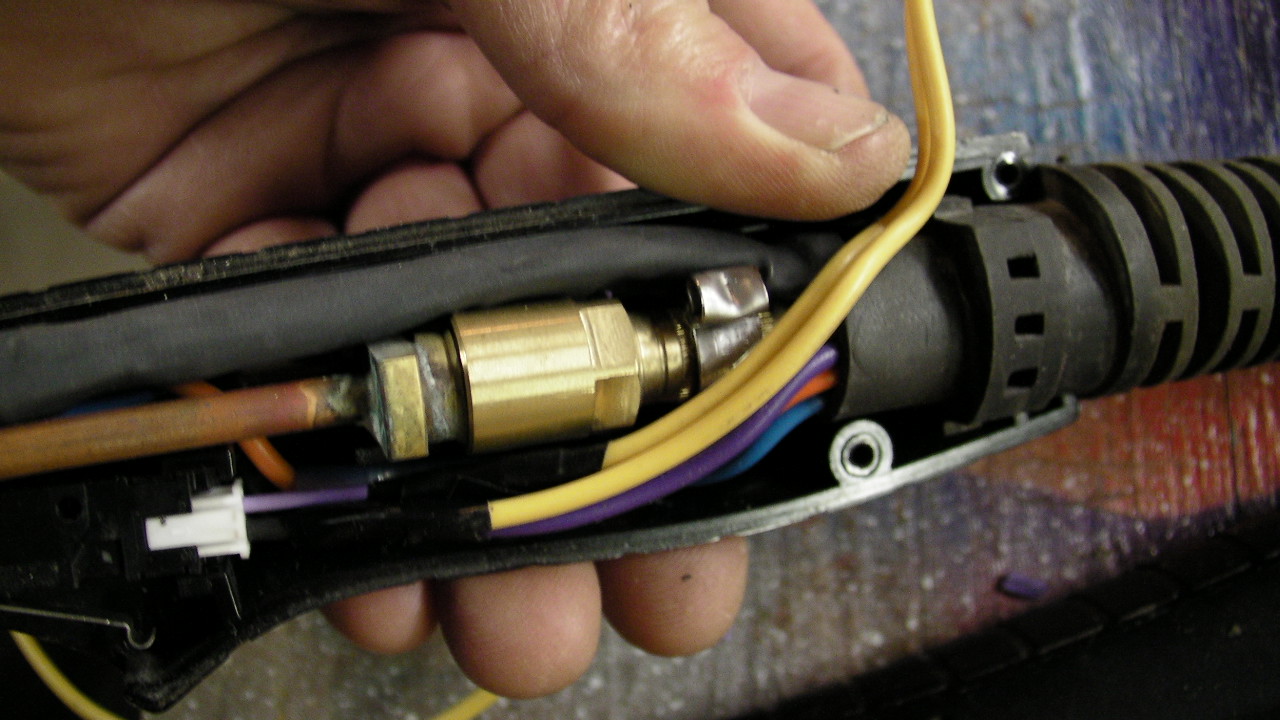

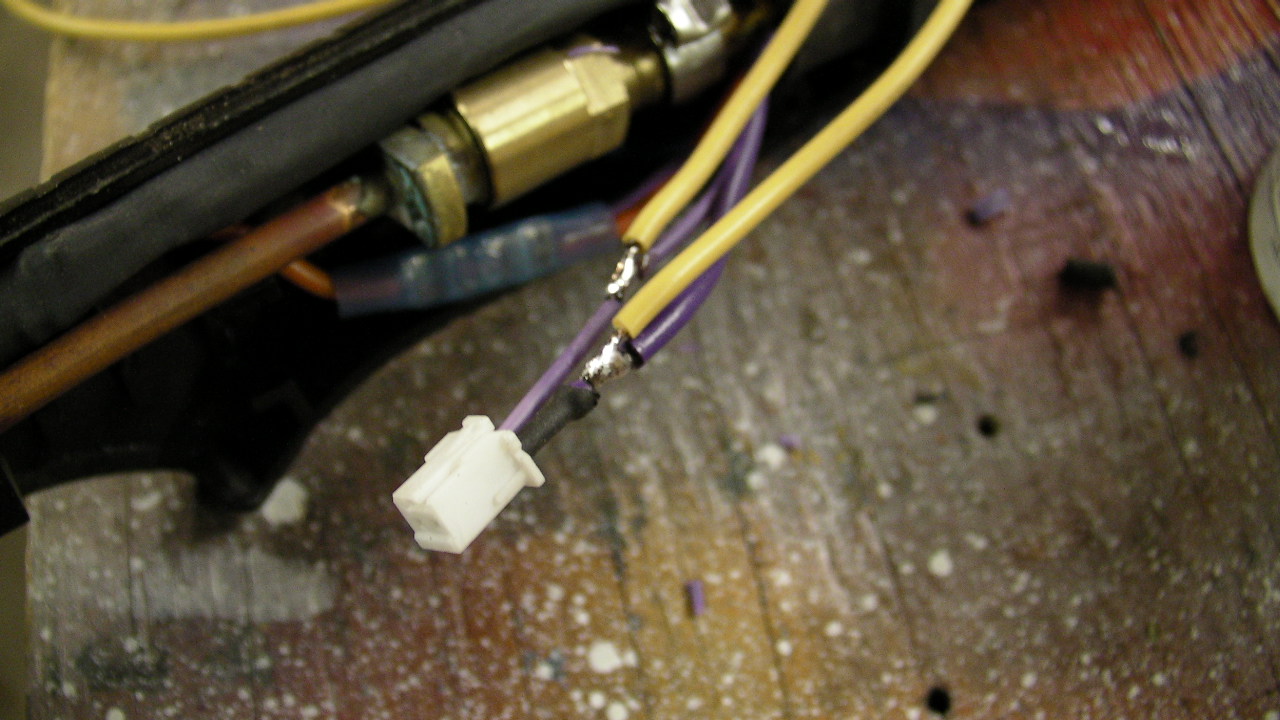

(3) Add a wire to each side.
(3) Add a wire to each side.

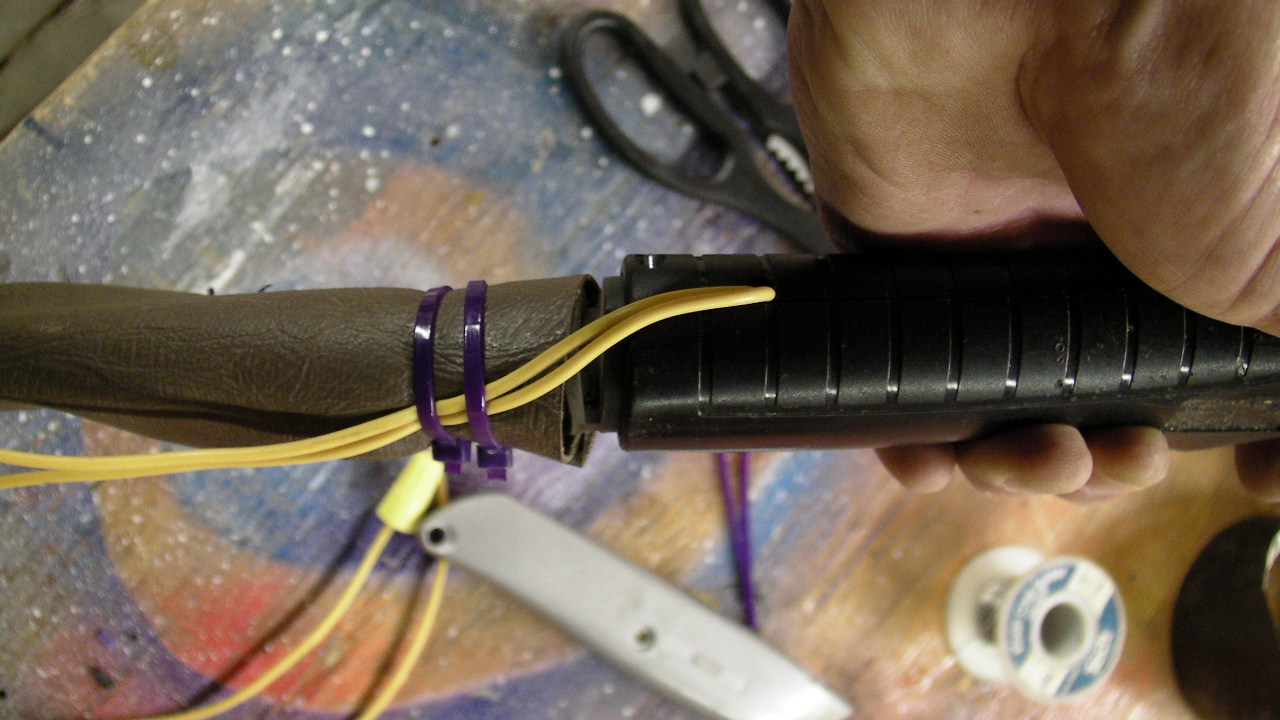

(5) We strapped the wires down along with the cable cover.
(5) We strapped the wires down along with the cable cover.

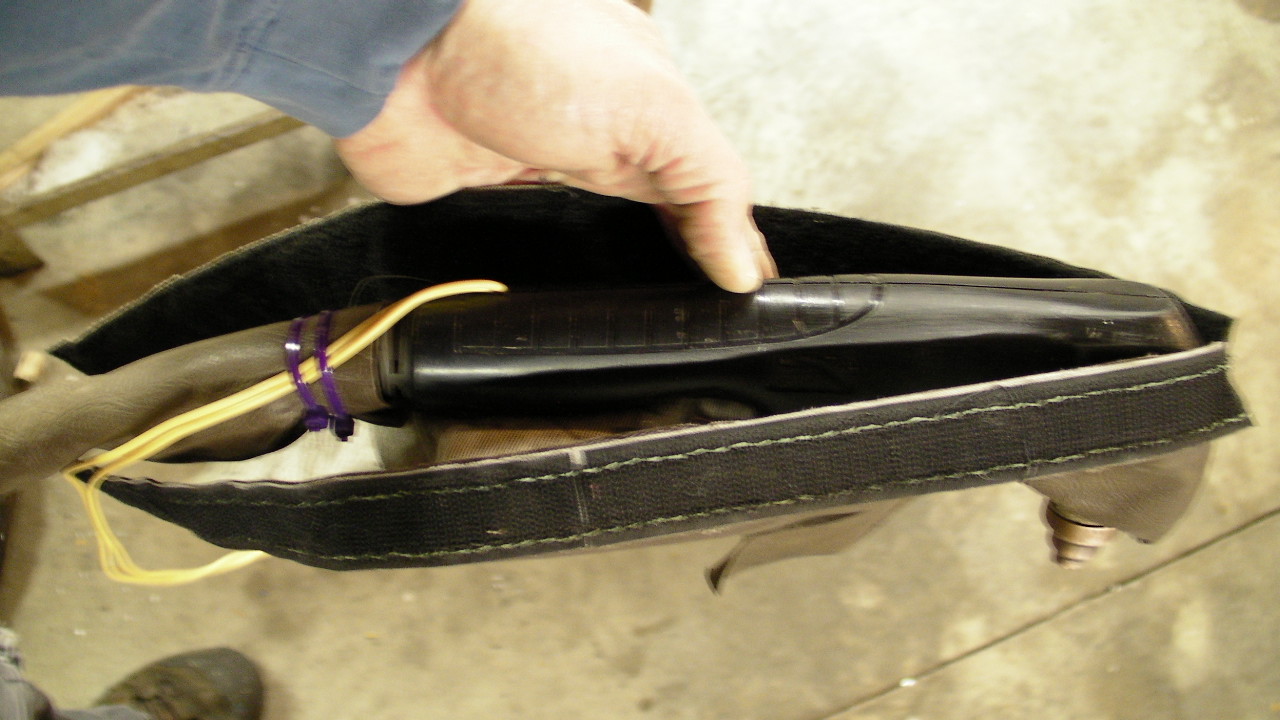

(7) The wires are neatly hidden away under the touch cover until they are needed.
(7) The wires are neatly hidden away under the touch cover until they are needed.

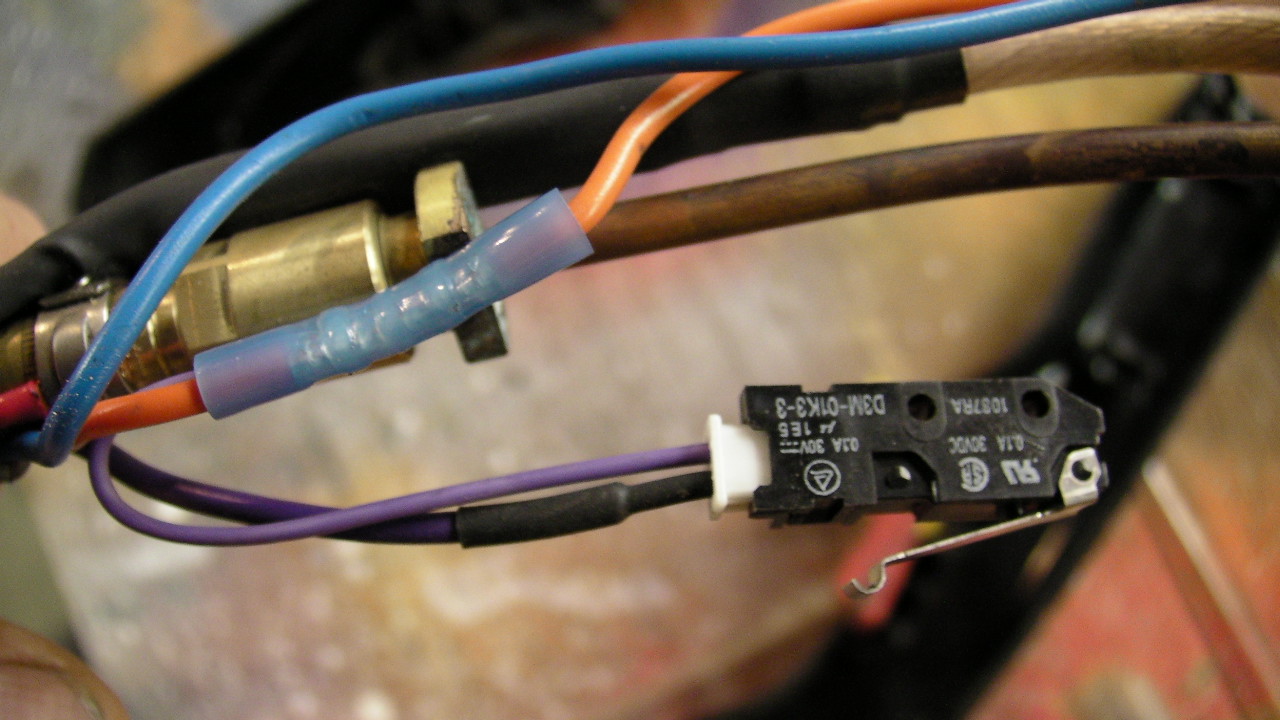

(2) Micro switch for torch trigger
(2) Micro switch for torch trigger
(4) Notch the handle and route the wire out.
(4) Notch the handle and route the wire out.

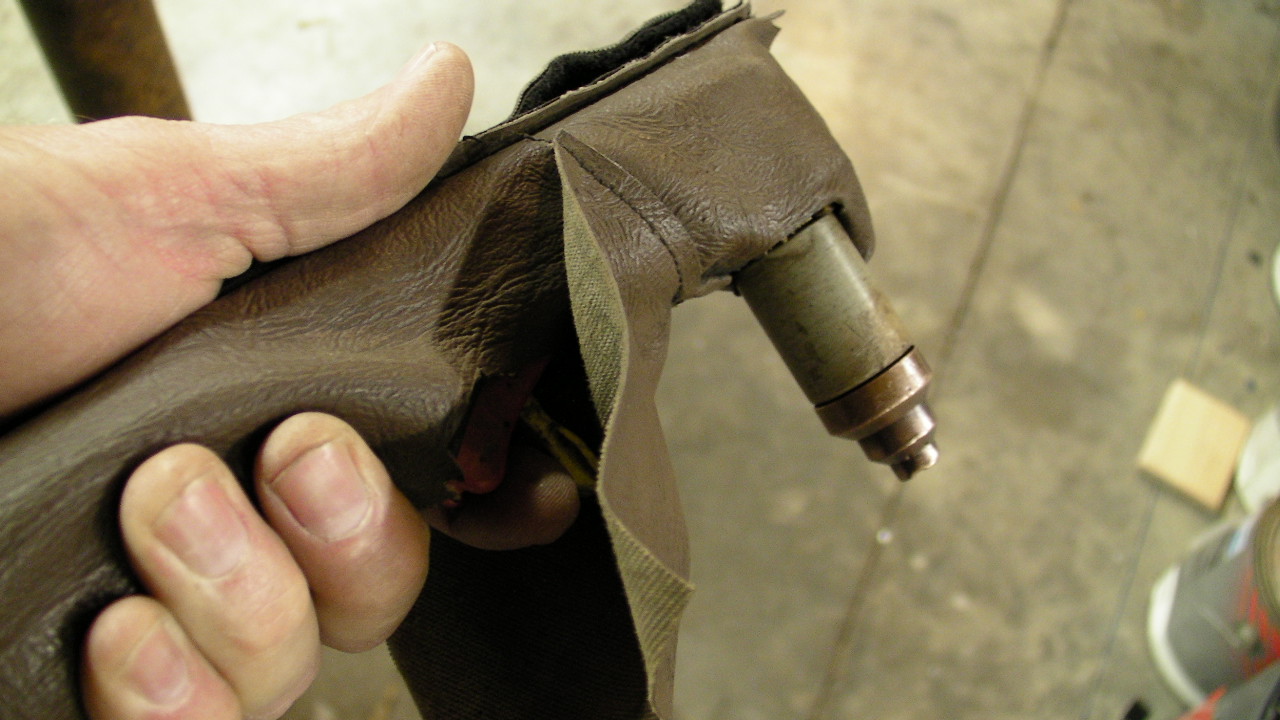

(6) We made a cover for the plasma torch too.
(6) We made a cover for the plasma torch too.

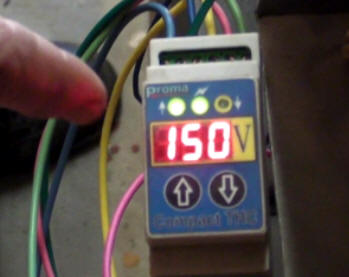

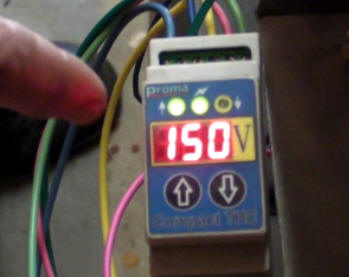

Proma Compact THC
Proma Compact THC
CNC Plasma Cutting photo 9
