Starting the Hull Sides

Hull

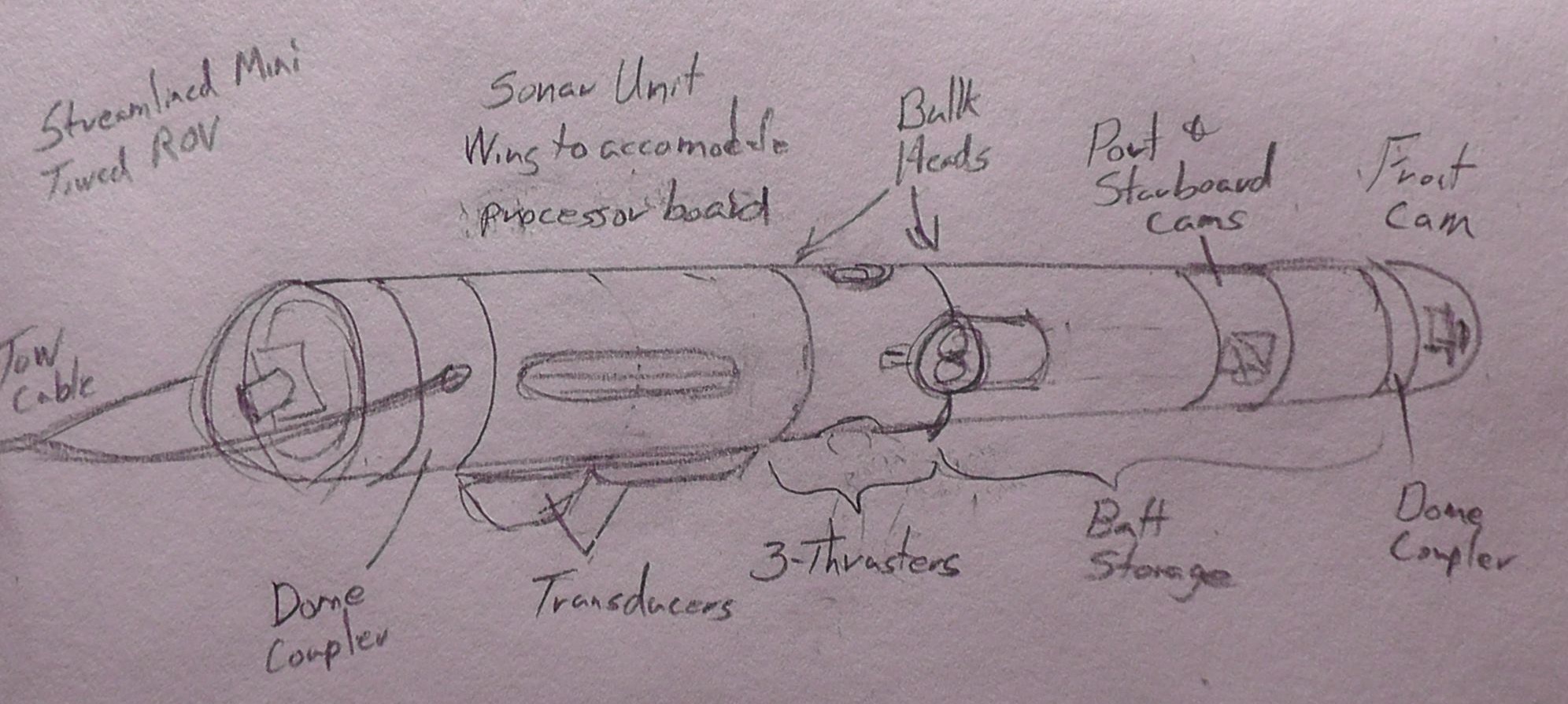

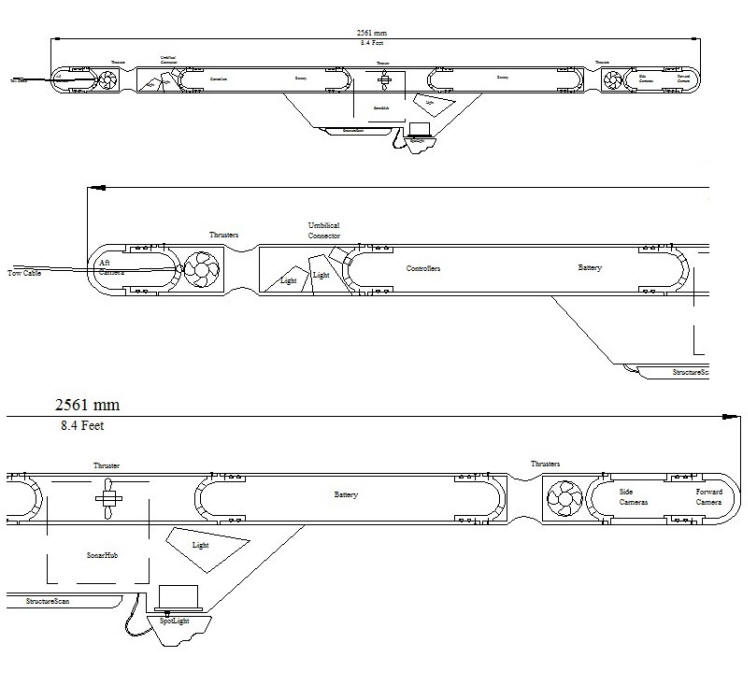

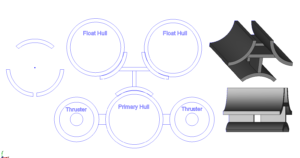

Hull Design 1
Hull Design 1

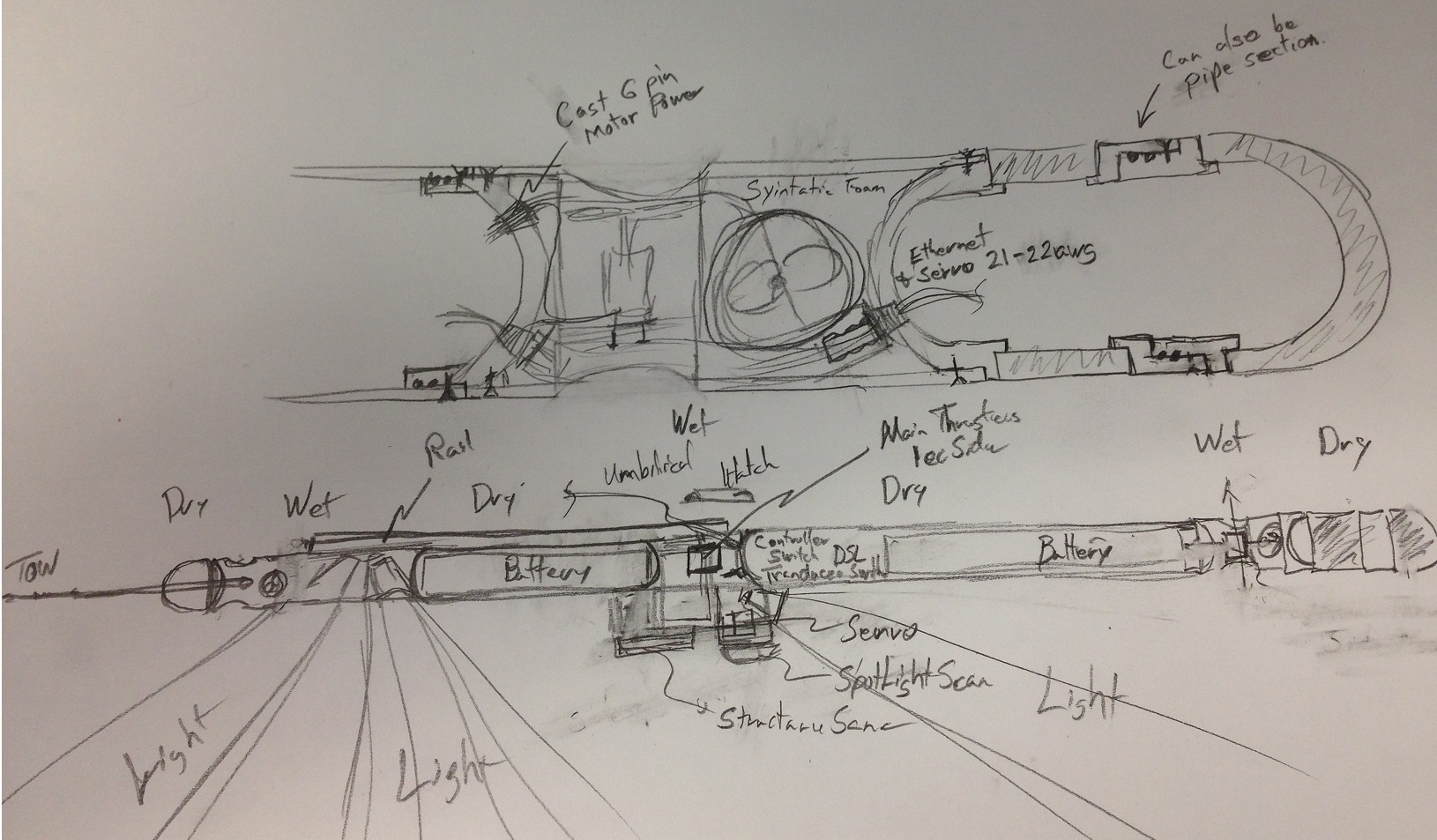

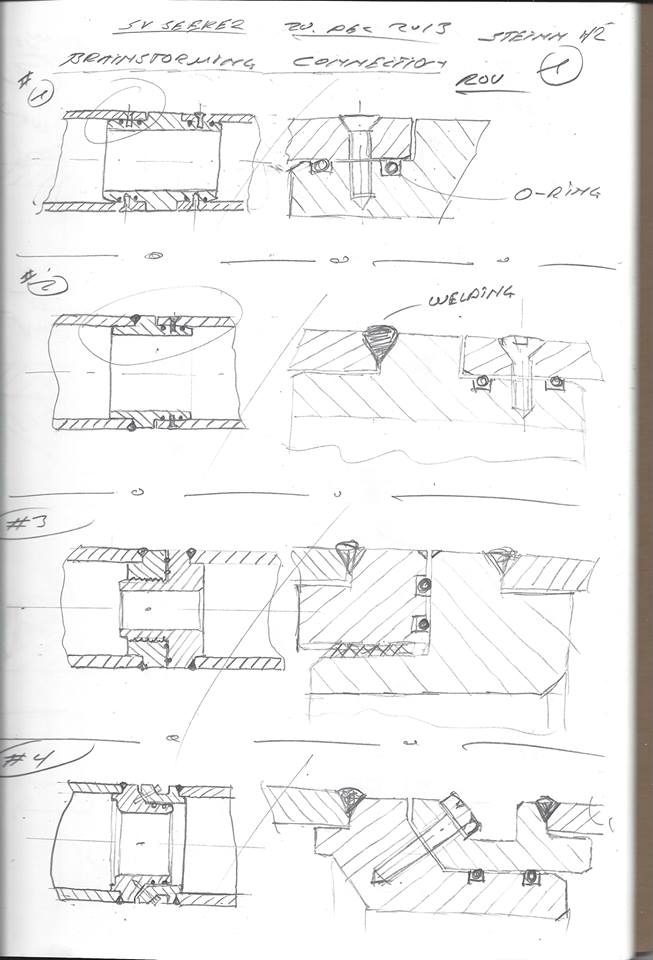

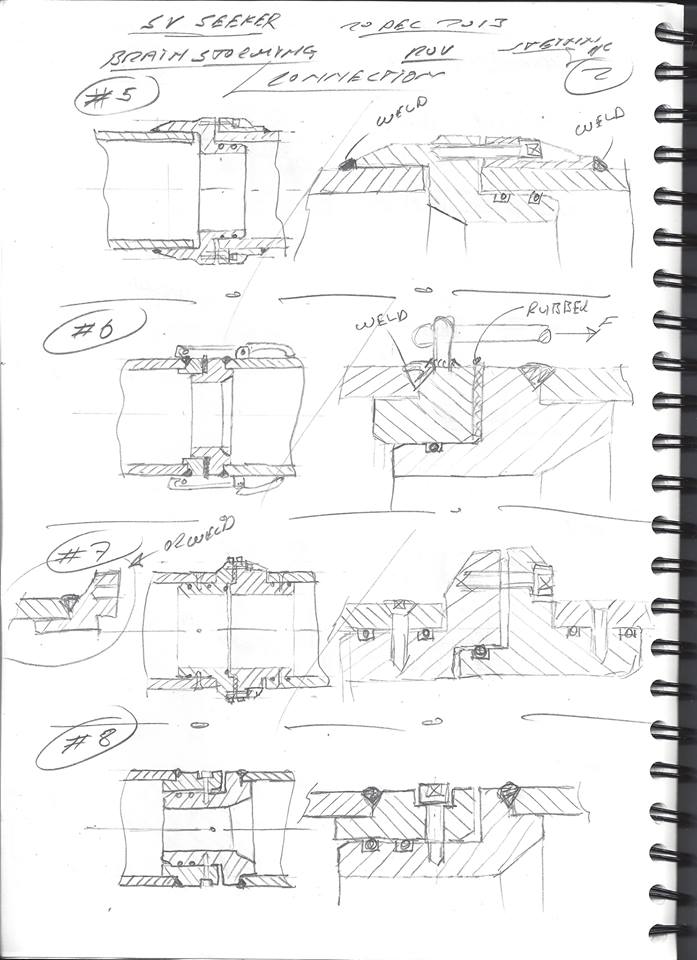

Hull Design 2
Hull Design 2

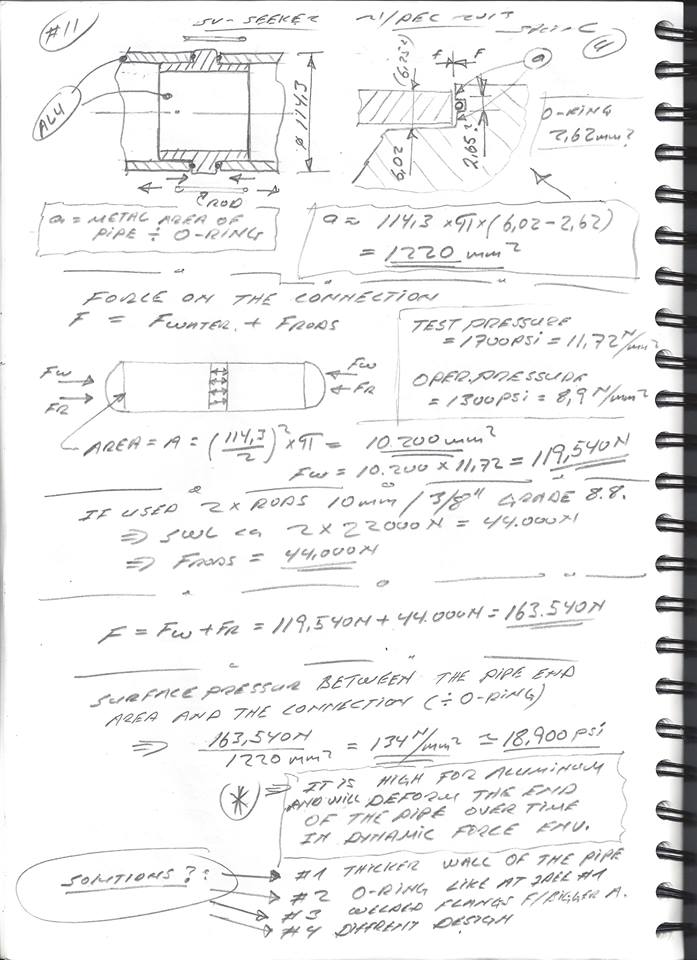

Hull Design 3
Hull Design 3

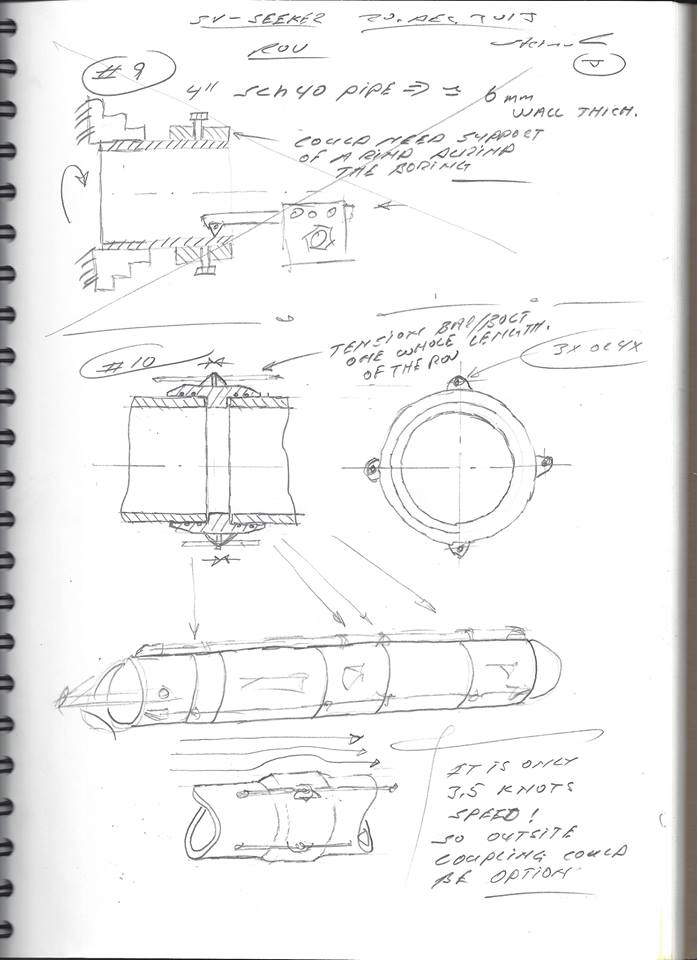

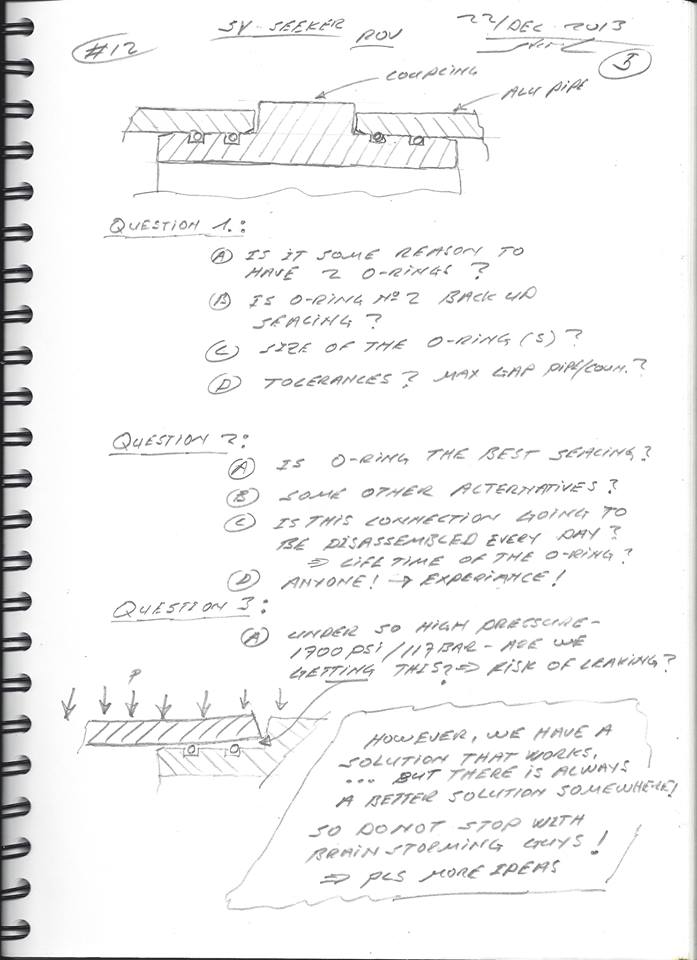

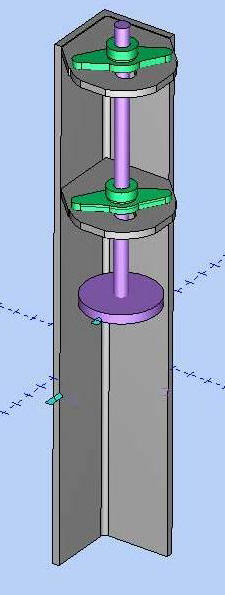

Dave Allen’s Pipe Boring Tool Design
Dave Allen’s Pipe Boring Tool Design
Hull photo 5
Hull photo 6
Hull photo 7
Hull photo 8
Hull photo 9
Hull photo 10
Hull photo 11

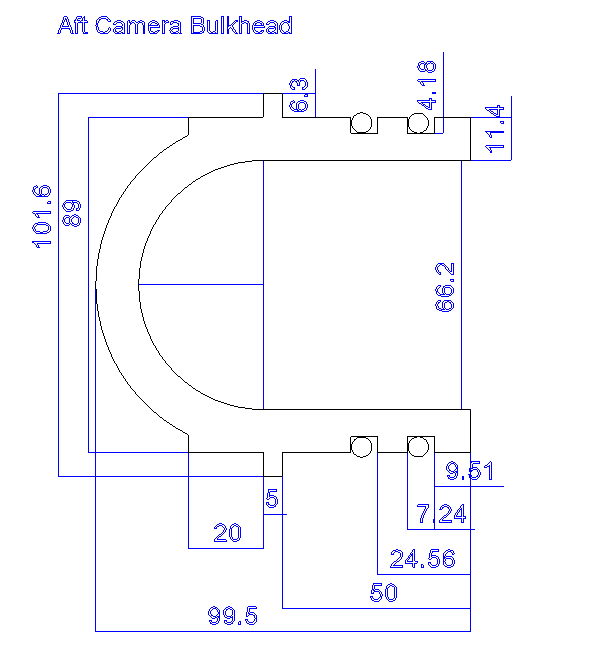

Aft Camera Section Bulkhead – first design
Aft Camera Section Bulkhead – first design
Hull photo 13
Hull photo 14
Hull photo 15
Hull photo 16
Hull photo 17
Hull photo 18
Hull photo 19
Hull photo 20
Hull photo 21
Hull photo 22
Hull photo 23
Hull photo 24
Hull photo 25
Hull photo 26
Hull photo 27

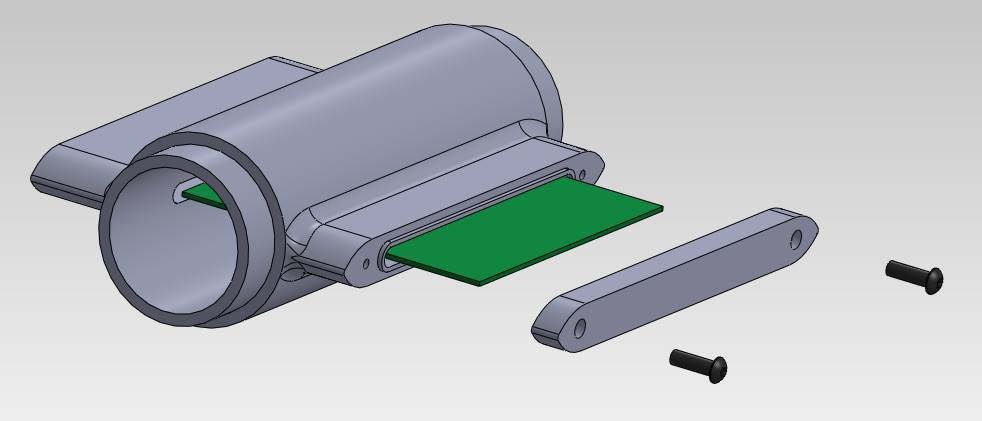

Cast Circuit Board Hull Housing -by Drew Smith
Cast Circuit Board Hull Housing -by Drew Smith

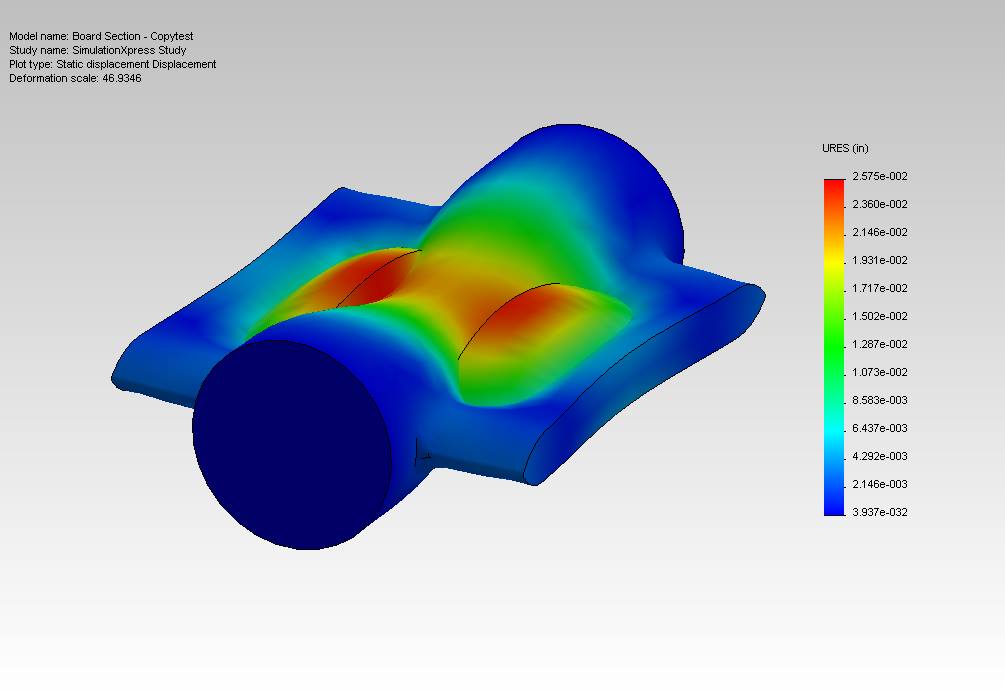

Rough simulation, viewing the ends as solid 4″ OD x 2″ thick 356 aluminum. Greatest deflection is .025″
Rough simulation, viewing the ends as solid 4″ OD x 2″ thick 356 aluminum. Greatest deflection is .025″

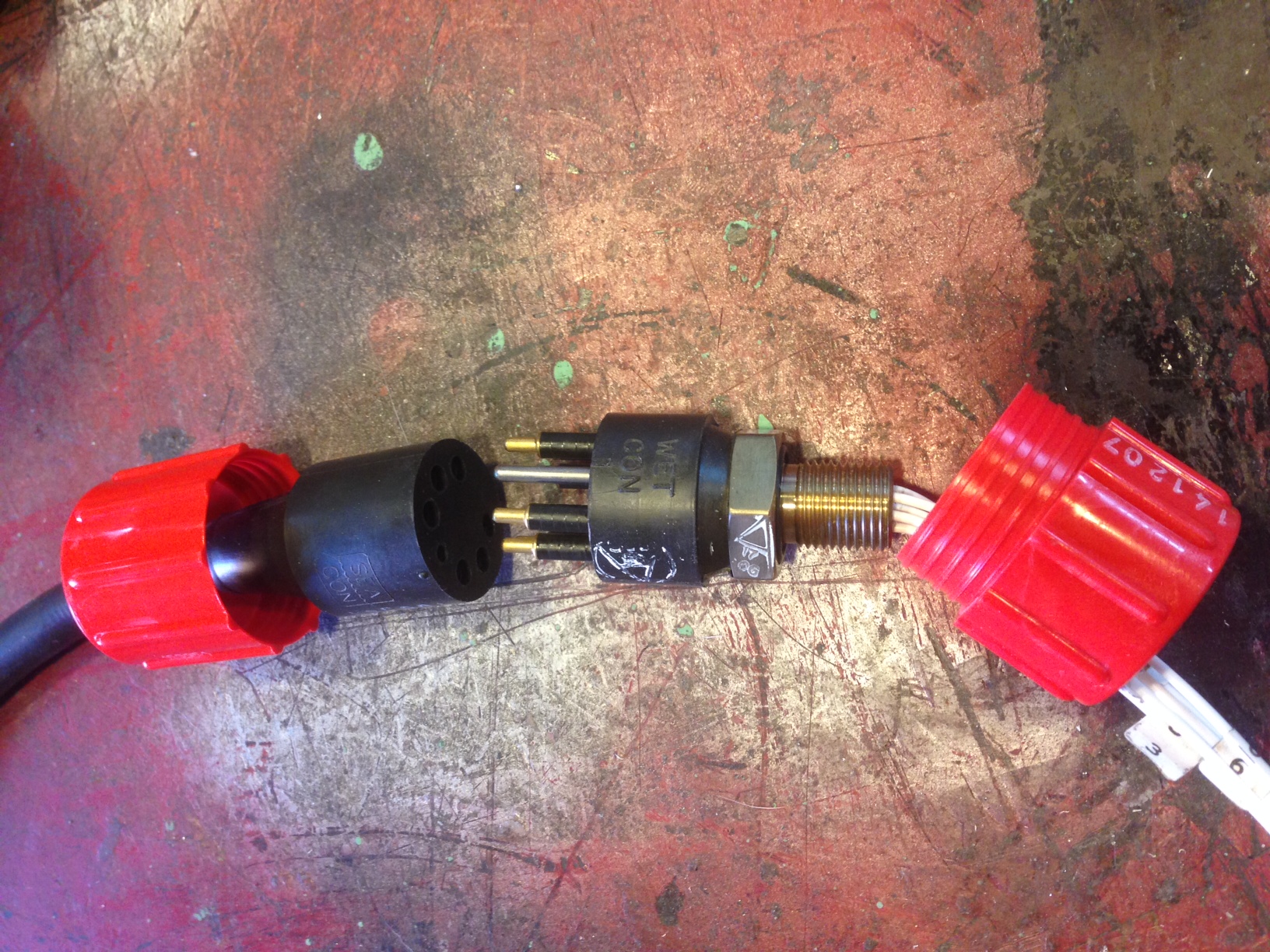

Hull photo 30
Hull photo 31
