For SV Seeker we currently plan to carry home built anchors that we can build as needed.

Claw Anchor, 176 lbs for $535

Go2Marine has a 176 pound, galvanized, Claw anchor for $535 + shipping. Around $660 with shipping. That $660 buys enough scrap steel for 4 anchors, Add another $130 hot dip galvanizing and you’ve got a comparable anchor for less than $300.

Building your own anchors makes sense if you’re already building a steel boat and especially if you’re taking your tools with you. You’re bound to loose one sooner or later and you may even be able to sell a few.

Bauwagga Anchor

The Bulwagga anchor is a good design built from simple flat plates that can be stored in pieces and bolted together when needed. If it’s only going to be used for the occasional storm and mainly used as ballast below deck then have it galvanized is not even necessary.

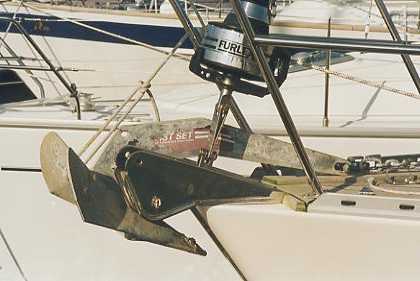

Delta Anchor

The delta, plow type anchor with a pivoting shank helps the anchor set and stay set even with moderate changes in the direction of pull. They as well can also be constructed from flat plate steel with some additional welding and they are a good candidate for everyday use on the bow. Having a shank that can be disconnected will also help a little bit when manhandling the thing is needed.

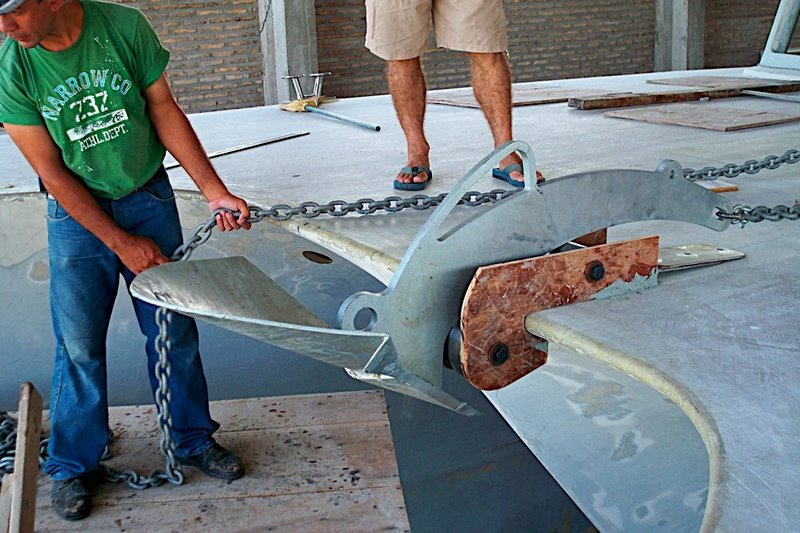

Raya Spade Anchor

A spade anchor like the Raya or Rocna can also have it’s shank made detachable for easier storage. And the roll bar of a Rocna could also be make detachable.
