Lofting and Cutting the Hull

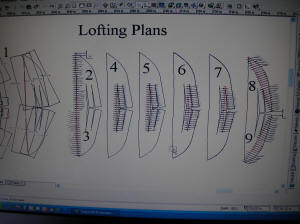

Plans modified from test models list offset distances from a straight line between two points.

Lofting and Cutting the Hull Plate

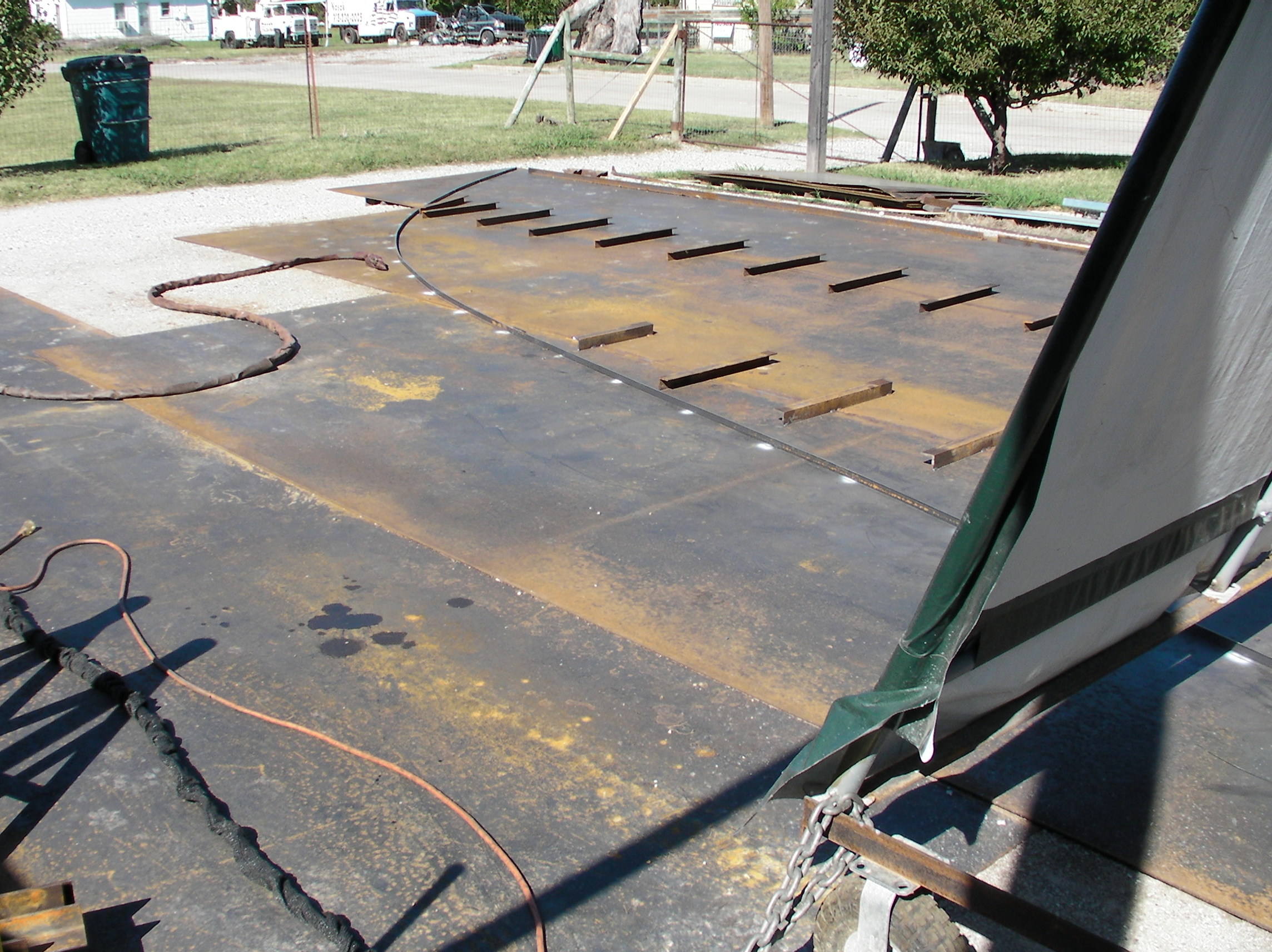

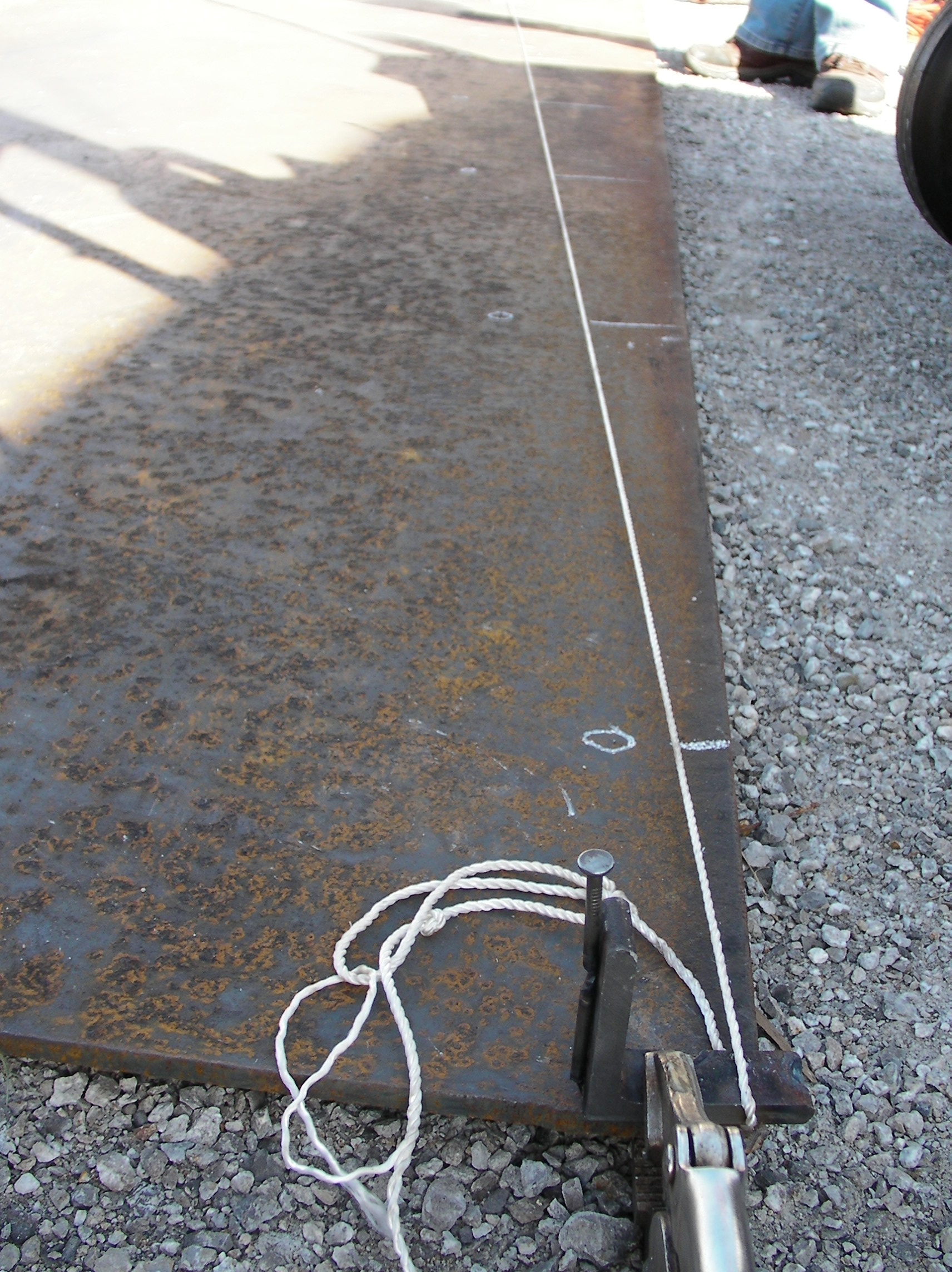

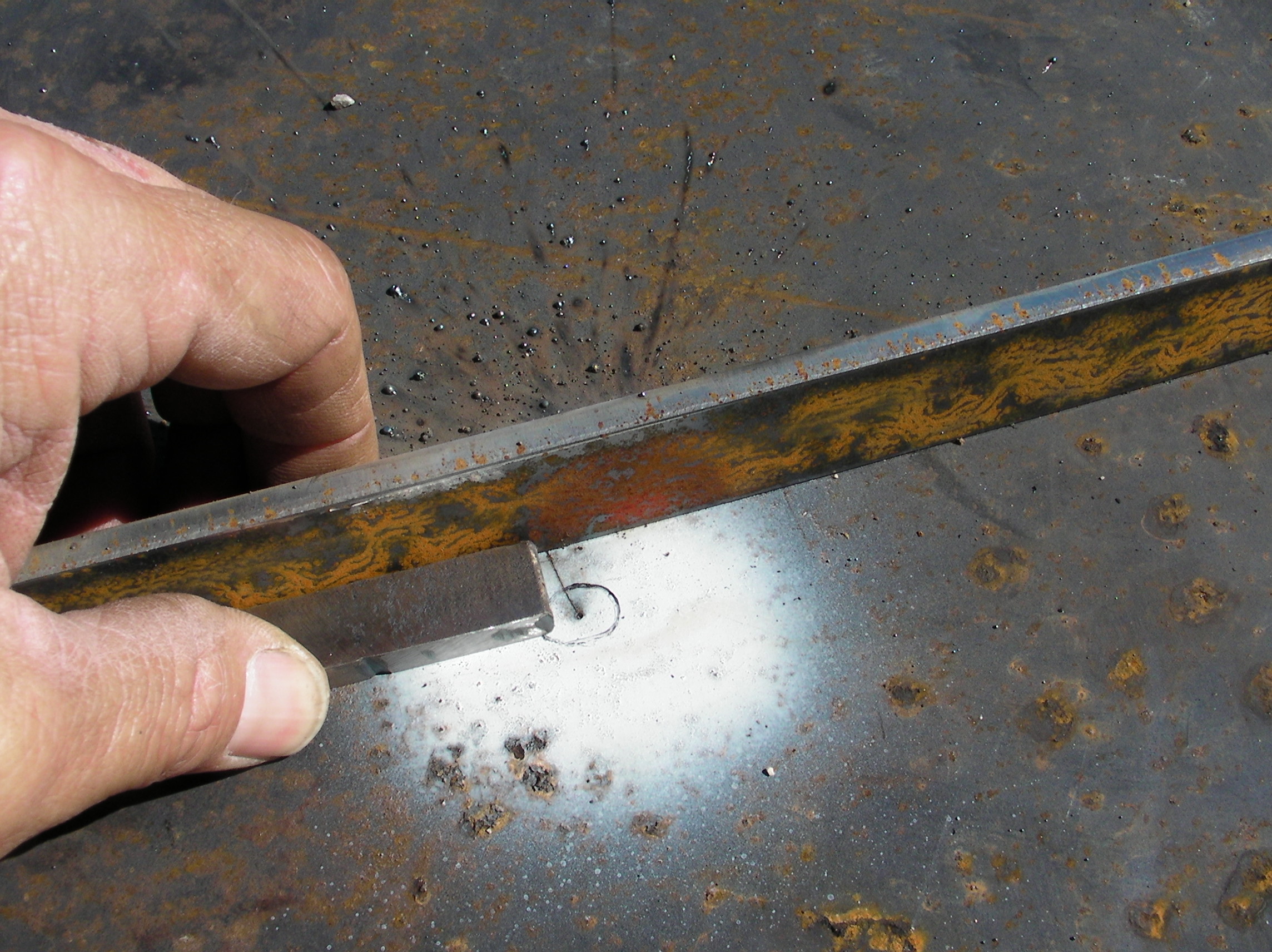

Line laid out on the steel with a punch mark at the offset distance. 1/4 x 1" flat bar tacked to the plate at a distance from the marks equal to the radius of the plasma torch cutting head. Cutting the steel with the plasma torch. A piece of sheet metal held on with a hose clamp extends slides along the flat bar. Bow of the hull trimmed to shape.
